Nearly 70% of field techs increasingly choose compression-style fittings over soldering for confined or gas line jobs. This change reinforces the major need for dependable, leak-tight joins on today’s job sites.
Browse Products For 1 4 Compression Union
This quick guide dives into Compression Union Brass and other compression-style fittings commonly seen in plumbing, HVAC, and instrumentation systems in the United States. It offers practical tips on choosing the correct 1/4 compression fitting, installing brass union assemblies, and troubleshooting leaks. It also addresses compatibility between materials.
Whether you are a working plumber, HVAC tech, instrumentation engineer, or a capable DIYer, this guide is for you. It targets practical job scenarios: simple installation, repeat use, and brass unions’ functionality when soldering is not feasible. We’ll compare 1/4 inch compression fittings and coupling options, calling out their best uses.
For parts and supplies, InstallationPartsSupply.com is a go-to supplier for brass compression union parts, compression nuts, and olives. They offer matched parts quickly. Later sections detail size selection, pressure boundaries, and install tips to avoid leaks and minimize callbacks.
Top Takeaways
- Compression Union Brass offers a no-solder, reusable joint for multiple tube types.
- Brass compression union connectors are ideal for tight spaces and service repairs.
- 1/4 compression fitting and 1/4 inch compression fitting formats are widely used in plumbing and instrumentation systems.
- InstallationPartsSupply.com carries nuts, ferrules, and unions for rapid swaps and matching.
- Proper selection and installation cuts down leakage, with clear steps included later in the guide.

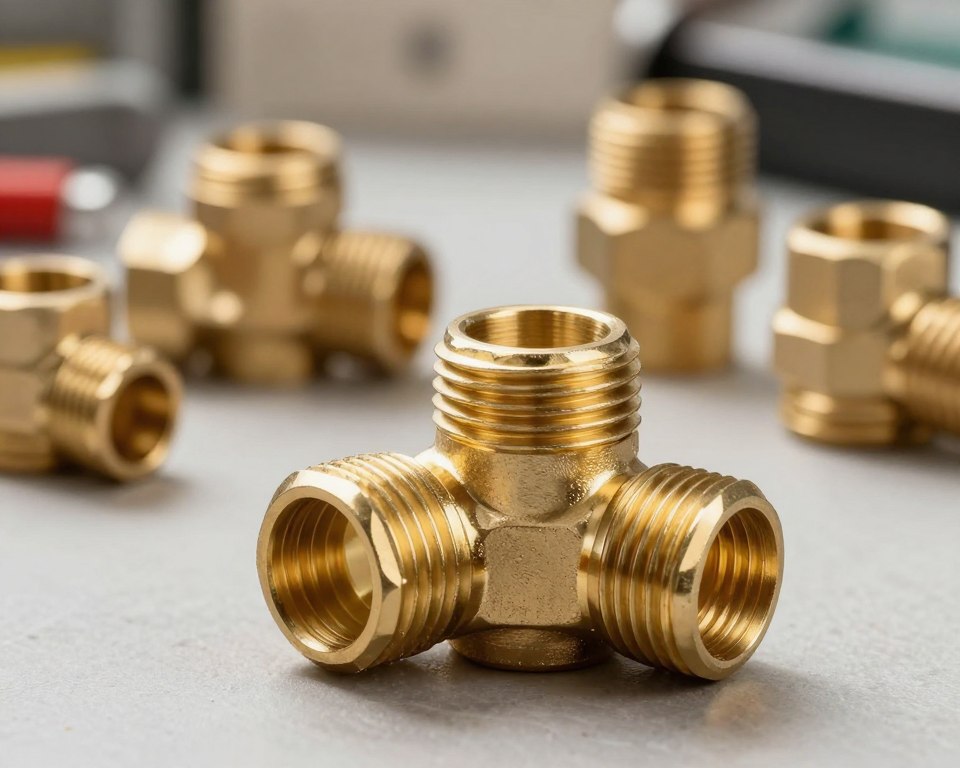

Brass Compression Union Fittings Explained And How They Work
A brass compression union fitting joins two tubing runs without solder. It includes a body, a nut, and ferrules for a leak-tight seal. The 1/4compression fitting is commonly used in instrumentation, refrigeration, and plumbing service.
Definition And Core Components
The brass compression union fitting includes three core parts. The fitting body takes tube on both ends. The nut screws onto the body, driving the ferrule (olive) into place. The ferrule seals by setting onto the tube’s OD.
Unions enable the joining of two tubing ends in a straight run without heat. Each end has its separate ferrule and nut, allowing for rapid assembly of varied tube sections during maintenance or job-site repairs.
How It Works In Practice
To install, push the line into the union body and secure the compression nut. When you tighten draws the nut, which presses the ferrule into the body’s tapered seat. This motion converts to radial force around the line.
This radial squeeze forms a tight contact seal between the ferrule and tube. A proper fit results in a metal-to-metal or metal-to-plastic seal interface based on materials. Improper tightening can damage the ferrule or fail to seat, undermining the seal.
Materials And Compatibility Notes
Brass compression unions are known for their anti-corrosion performance and ductility. They perform well with copper tubing and many potable-water systems. They also fit low-pressure gas service when installed with gas-grade PTFE tape and remain accessible.
For higher pressures or aggressive fluids, stainless fittings are usually preferred. Plastic compression fittings are fine for low-pressure water jobs. The 1/4compression fitting is available in brass or stainless to match different tubing OD, pressure requirements, and chemical demands.
Compression Union Brass: Benefits, Typical Uses, And Applications
Brass compression union fittings blend durability and everyday usefulness, ideal for plumbing and instrumentation tasks. They can be installed rapidly, without the need for heat, making them well-suited for compact or flammable spaces. The 1/4 compression union and compact 1/4compression fittings are favored for their compact, reliable joints.
Key Advantages Of Brass Unions
Installation is fast and tool-friendly. No torch or solder is needed, lowering job time and safety risks. Many brass union nuts and bodies are reusable, helping save on repeat service calls. Ferrules (olives) may need to be replaced after repeated assemblies.
Brass resists corrosion and bends slightly under load, creating a leak-tight seal with copper lines. This minimizes galvanic issues when paired with copper or select stainless parts. Manufacturers list many brass compression union products for wide temperature and pressure ranges, fit for both domestic and light industrial use.
Typical Applications In The United States
In household plumbing, brass compression unions are frequent beneath sinks, at stop valves, and on hot water heater connections. The 1/4 compression coupling is often used in beverage equipment, ice-making equipment, and small water lines that need easy service access.
Gas service with serviceable copper lines sometimes relies on Compression Union Brass unions for inspection and quick disassembly. HVAC and refrigeration technicians depend on brass unions for service runs that must be disconnected and reconnected during service.
Instrumentation, lab, and industrial panels use small 1/4compression fittings for sampling, sensing, and pneumatic lines. These environments favor the 1/4 compression union for leak-tight joins and rapid swaps.
Why Pick Unions Over Other Options
Unions cut time compared to soldered connections. Without a torch, work can move forward in areas where heat would be hazardous or where you need the system back online quickly. A brass compression union fitting allows re-alignment and later breakdown for repairs.
Soldered joints often stay more compact and can cost less in material cost. Compression unions offer flexibility and field-service advantages, making them the top choice when you need access, speed, and reusability. For many installers, a 1/4 compression coupling offers the best balance between small size and dependable performance.
Selecting The Correct 1/4 Inch Compression Fitting And Related Sizes
Selecting the right fitting involves grasping the terminology and running a fast parts check. It’s critical to know if “1/4” refers to the tubing outside diameter or the thread size before making a purchase. Many catalogs list different SKUs for tubing, union bodies, and inline joiners under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.
Understanding common terms
It’s important to know the basic components: the compression nut, ferrule, union body, and inline coupler. The compression nut presses the ferrule against the tube and the fitting taper. A union body connects two ends, while a coupler links two tube ends in-line. Always check the manufacturer’s language on product pages for accurate meanings.
Matching tubing OD, ferrule geometry, and thread pitch
The tubing outside diameter must match the ferrule size perfectly. Ferrule profile and body seat taper can vary by brand. Mixing a ferrule from one brand with a fitting body from another can create seepage. Ensure that the thread style and pitch match for parts that screw together. Differentiate between NPT threads and straight, parallel threads that use sealant methods or O-rings.
Material and soft tubing notes
For PTFE and plastic tubing, verify the ferrule style and whether a support insert is required to prevent wall collapse. Brass ferrules seat differently than stainless ferrules. If you need better resistance to aggressive fluids or high heat, consider stainless options over standard Compression Union Brass.
Pressure and temperature considerations
Pressure ratings vary based on material and fitting size. Brass and miniature fittings, suitable for instrumentation lines, will have lower PSI than larger stainless compression fittings. Always consult the manufacturer’s pressure/temperature tables for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.
Practical checklist
- Verify whether “1/4” = tubing OD or pipe-thread size.
- Align tubing OD to ferrule size and brand profile.
- Check thread type and pitch; note NPT vs parallel threads.
- Check pressure/temperature ratings for Compression Union Brass or other options.
- For PTFE and plastic, verify need for inserts or redundant seals.
| Item | Typical Use | Key Check | Material Notes |
|---|---|---|---|
| 1/4 inch compression fitting | Pneumatics, instrumentation | Verify if 1/4 = OD or thread | Brass is common; stainless for higher pressure |
| 1/4compression fitting (compact) | Small lines, beverage systems | Confirm ferrule geometry match | Some makers use brand-specific ferrules |
| 1/4compression coupler | Inline tube joins | Check tube OD and internal bore | Plastic lines may need inserts |
| 1/4 compression coupling | Panel connections, instrumentation | Confirm pitch and sealing method | Compression Union Brass common choice |
| Compression Union Brass | Two-port unions, moderate-pressure systems | Check maker PSI/temp charts | Less suited for very high PSI or aggressive chemicals |
Installation Best Practices For Brass Compression Unions
Ensuring a Compression Union Brass union’s service life requires correct installation. Begin by properly prepping the tube and components before any tightening. This up-front attention is key in stopping seepage and failures down the line.
Preparing tubing for a leak-tight seal
Use a reliable pipe cutter to cut tubing straight. Remove any burrs or nicks or surface marks that could lead to leaks. It’s also important to check the tubing’s outside diameter for true roundness. Non-round diameters, frequent with coiled tubing, can prevent proper compression.
Next, slide the compression nut and ferrule onto the tube the right way. Always use new olives, as they help ensure a dependable seal, even on copper tubing. For soft plastic lines, consider using tubing inserts or supported ferrules to prevent tube collapse.
Proper tightening technique
Begin by tightening by hand the compression nut. Then, follow the manufacturer’s recommended turns. This approach helps create the correct seal without over-tightening.
It’s a common mistake that tighter is always better. Tightening too little can lead to a failed seal. Over-tightening, on the other hand, can ruin the sealing surfaces, threading, or create leaks. After initial tightening, bring to pressure the system and tighten in tiny increments if slight seepage appear.
Using two wrenches and avoiding pipe twist
Brace the fitting body with one wrench while turning the compression nut with another. This method avoids tubing rotation and lowers stress on the joint.
In tight spaces, ensure the fitting body is braced and lined up before final tightening. This prevents cross-threading issues and ensures the ferrule installation is correct. Proper technique protects the fitting from deformation and ensures a reliable seal.
| Step | Action | Why it matters |
|---|---|---|
| 1 | Square cut, deburr, inspect OD | Avoids leak paths and promotes even compression |
| 2 | Slide nut and new ferrule onto tubing | Correct ferrule installation gives predictable sealing |
| 3 | Finger-tighten, then specified turns | Builds the line-contact seal without harm |
| 4 | Use two wrenches: one on body, one on compression nut | Stops tube twist and lowers mechanical stress |
| 5 | Test under pressure and tighten in increments | Stops weeping without over-tightening |
Troubleshooting Leaks And Maintaining Compression Unions
This section covers frequent leak causes and simple fixes for Compression Union Brass connections. It guides you through checking the issue, deciding on snugging, replacing parts, or switching sealing methods. The aim is to ensure a safe, lasting seal for 1/4 compression fittings and bigger sizes.
How Tight Should A Compression Fitting Be?
Create a leak-tight seal without distorting tubing or ferrules by tightening the nut only enough. Many manufacturers recommend a number of turns past hand-tight over torque specs. For copper lines, stop tightening when resistance is felt and apply only a few quarter-turns with a wrench.
Over-tightening can warp ferrules, scratch tubing, and make difficult later take-apart. Over-tightening is a frequent cause of leaks and wear to thread surfaces on Compression Union Brass parts.
Steps To Fix A Leaking Compression Fitting
Try the easiest step: hold the union body firm and tighten the nut a small amount with a second wrench. This often fixes small leaks without full take-apart.
If the leak continues, break down the joint. Remove the nut and ferrule, then inspect the tubing and ferrule for damage. Replace any damaged ferrule before putting it back together.
Apply approved PTFE tape for gas only for gas lines when the manufacturer allows. Do not coat the ferrule unless directed by the maker. For PTFE lines showing creep, use a fitting with an internal O-ring or redundant seal to eliminate seepage.
Rebuild with a new olive and nut when necessary. Finger-tighten, then finish with the recommended turns. Test the joint under working pressure and watch for slow seepage.
When To Replace Ferrules Or Fittings
Replace ferrules showing flattening, scoring, or taking more turns to seal. Do not reuse ferrules on copper tube for dependable long-term results.
Replace the body when internal taper surfaces, bores, or thread surfaces are marred, or when thread galling has occurred on stainless steel components. Source replacement ferrules, nuts, and bodies that match the original manufacturer when possible to avoid mismatch problems.
Ferrule Types, Tubing Options, And Material Considerations
Knowing ferrule styles and tubing selection is key to consistent sealing. This guide breaks down common ferrule geometries and tubing materials. It helps techs and engineers avoid leaks and cut rework.
One-piece vs two-piece ferrules
One-piece ferrules are basic. A single part grips the tubing, making a seal. They work well on softer walls like brass tubing or some plastic tubing. This design also reduces parts inventory.
Two-part ferrule systems split the load into a front and a rotating rear ferrule. The rear ferrule separates torque from the sealing face. This design increases lasting reliability for stainless lines and high-vibration runs. It’s popular where galling and asymmetric compression are concerns.
Symmetrical vs. asymmetrical ferrules
Symmetric ferrules have a double-cone design and install both ways. This cuts assembly time when volume matters. They can move off-axis more easily, which may lead to slight leaks on very hard plastics.
An asymmetrical olive has a tapered profile and must be oriented the right way. It gives better axial positioning and fights off-axis movement. This makes it the go-to choice for precision applications where alignment and consistent sealing matter.
Choosing tubing: metal vs plastic and PTFE notes
Metal tube like copper or stainless tubing offers rigid walls that hold consistent contact with the ferrule. Use clean square cuts to preserve seal quality with 1/4compression sizes and larger sizes.
Stiff plastics like PEEK and PTFE alternatives can work when they are stiff. Flexible plastics such as polyurethane and vinyl are poor choices without support. Tubing inserts help when the wall is too soft.
PTFE tubing brings excellent chemical resistance and bendability, but it tends to cold-flow under compression and heat exposure. This creep can cause leaks over time. Use fittings designed for PTFE, redundant seals, or support inserts to limit creep when PTFE tubing is required.
| Characteristic | One-piece ferrule | Two-piece ferrule | Symmetrical ferrule | Asymmetrical ferrule |
|---|---|---|---|---|
| Best for | Soft tubing, reduced inventory | Hard tubing, vibration-heavy runs | Fast assembly, installs either way | Axial alignment, precision systems |
| Installation sensitivity | Low | Medium (orientation helps sealing) | Low | High (must be installed correctly) |
| Resistance to galling | Low | High | Medium | High |
| Suitability with PTFE tubing | Limited without inserts | Better with inserts or O-rings | Possible with support | Preferred when alignment is critical |
| Typical use with 1/4compression fittings | Common for general plumbing | Often chosen for instrumentation and gas lines | Used in high-volume builds | Used in precision applications |
Pair ferrule geometry to tubing rigidity, system pressure, and assembly throughput. For PTFE tubing, select fittings that include secondary sealing or use tubing inserts. Consult tubing and fitting manufacturers for final compatibility checks before installing critical lines.
Comparison: Compression Unions Vs. Soldering And Other Joining Methods
Picking the best joining method is essential for safety considerations, ease of service, budget, and visual finish. Compression unions are well-suited for tight spaces and near fire-risk materials due to their tool-light installation. Solder joints, on the other hand, creates slim joints that many plumbers prefer for visible runs and long-term permanence.
When to pick compression unions over soldering
Select compression unions when torch use is unsafe or limited. A 1/4 compression union or a 1/4 compression coupling allows for quick repairs without taking large systems offline. Compression Union Brass parts enable rapid service and repeated disassembly for testing work or fine-tuning.
Compression trade-offs vs soldering
Solder joints are often less expensive per joint and sit closer to the pipe for a cleaner look. Soldering can deliver tough, vibration-resistant connections for many permanent installs. Compression unions, while larger and higher cost per fitting, are attractive when rework needs, field changes, or spark-free methods are priorities.
Mixing components and manufacturer compatibility
Do not combine ferrules, nuts, and bodies from different brands unless the supplier verifies compatibility. Differences in seat angle, ferrule lengths, and thread thread pitch can compromise the seal. For critical or high-purity lines, use manufacturer-specified ferrules and parts designed to resist thread galling and meet clean standards.
Quick checklist
- If space is confined or flame is hazardous, pick compression fittings.
- For long exposed runs prioritizing visual finish and permanent joints, consider soldering.
- Match up 1/4 compression union parts by maker when using 1/4 compression coupling assemblies.
- When maintenance access matters, Compression Union Brass units give reliable reuse and simple replacement.
Final Thoughts
Compression Union Brass fittings serve as a trusted alternative for soldered joints in various fields like plumbing, HVAC, gas, and instrumentation work. When properly selected and installed, they ensure leak-free performance. This is achieved without the need for heat or specialty tools.
Following installation basics is essential. Ensure tubing is cut square and select the correct ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for tightening. This step is vital to avoid twist in the tubing and to maintain the ferrule seal strength.
For fixing minor leaks, a small tightening adjustment often does the trick. Replace ferrules that show signs of damage or work hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s integrity. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on sizing charts, matching ferrules and unions, and locating the right Compression Union Brass components for your project.
